When you need custom steel parts, your choice between investment casting and sand casting depends on what matters most to you: precision, cost, or part complexity. Investment casting gives you high accuracy and a smooth finish, making it great for detailed parts. Sand casting costs less upfront but might need more machining. See the table below for a quick cost comparison:
Criteria | Investment Casting | Sand Casting |
|---|---|---|
Cost | Higher mold cost but less machining needed. | Lower mold cost but may require extra machining. |
Jiangsu Guojin Metal New Material Technology Co., Ltd. leads the industry with stainless steel heat-resistant products. You can trust their expertise to help you choose the right process for your project.
Investment casting delivers high precision and smooth surfaces, ideal for detailed and complex steel parts.
Sand casting offers lower upfront costs and faster production, making it suitable for large, simple parts and small batches.
Choose investment casting when you need tight tolerances, fine details, and minimal machining.
Pick sand casting for big parts, cost-sensitive projects, or when you need quick, flexible production.
Consider your part size, complexity, and volume to select the best casting method that balances quality and cost.
You want to choose the best casting method for your custom steel parts. Investment casting and sand casting have unique strengths. The table below shows the most important differences:
Feature | Investment Casting | Sand Casting |
|---|---|---|
Cost Strategy | High tooling cost, lower machining cost | Low tooling cost, higher machining cost |
Surface Finish | Smooth (Ra 63–125) | Rough / Grainy (Ra 250–500) |
Precision | High (+/- .005 inch) | Low (+/- .030 inch) |
Tolerances | ±0.1 mm or better | ±0.5 mm to ±1.0 mm |
Speed to Market | Slower (Complex tooling creation) | Faster (Simple pattern making) |
Volume Sweet Spot | Mid-to-High Volume | Low-to-Mid Volume |
Typical Part Size | Ounces to 100 lbs | Pounds to Tons |
Tip: Investment casting works best when you need parts with fine details and smooth surfaces. Sand casting is ideal for larger parts and projects where speed and cost matter more than precision.
You notice that investment casting uses a more complex process. You get parts with tight tolerances and excellent surface finishes. This method suits parts that need high accuracy, like stainless steel heat-resistant anchors or insulation nails. Sand casting uses a simpler process. You can produce bigger parts quickly and at a lower cost. The surface is rougher, so you may need extra machining.
If you want to make small, intricate parts, investment casting gives you the best results. If you need large, sturdy parts for heavy-duty applications, sand casting is the better choice. You can match the casting method to your project needs by looking at these key differences.
Investment casting gives you high precision and smooth surfaces.
Sand casting offers lower upfront costs and faster production for large parts.
Choose investment casting for complex shapes and tight tolerances.
Pick sand casting for big parts and cost-sensitive projects.

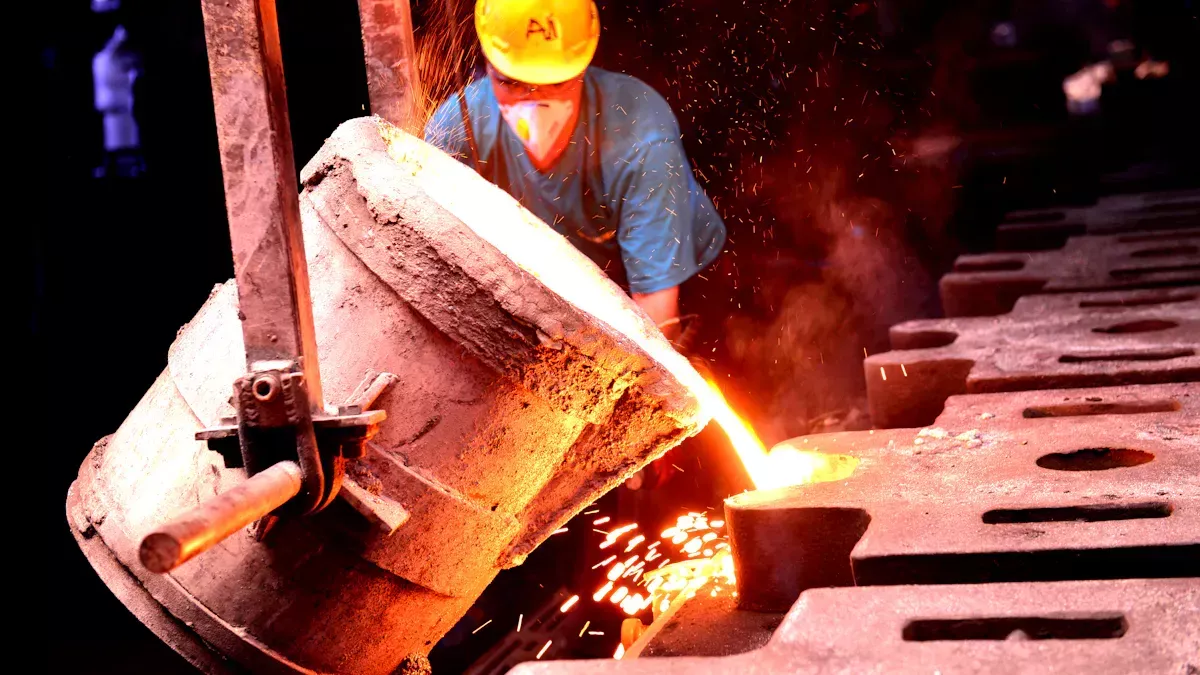

Image Source: pexels
You start with a wax pattern that matches the shape of your final part. Workers dip this pattern in ceramic slurry to build a hard shell. After the shell dries, they melt out the wax and pour molten steel into the empty mold. When the metal cools, they break away the ceramic shell to reveal your finished part. This process gives you a very accurate copy of your original design. Jiangsu Guojin Metal New Material Technology Co., Ltd. uses this method to create custom stainless steel and heat-resistant parts for demanding industries.
Investment casting stands out for its ability to produce parts with tight tolerances and smooth surfaces. You can achieve minimum wall thicknesses as low as 0.5 mm. This means you can design intricate features and thin sections that other methods cannot match. For example:
You can create parts with fine details and complex shapes.
You get a surface finish that often needs little or no extra machining.
You can reduce material waste and save time in finishing steps.
Jiangsu Guojin’s skilled technicians use advanced equipment to deliver precise, custom steel castings. You get reliable parts that perform well in high-temperature environments.
Casting Method | Minimum Wall Thickness |
|---|---|
Investment Casting | 0.5 mm |
Sand Casting | 2–3 mm |
You find investment casting in many industries that need accuracy and durability. Here are some examples:
Industry | Applications |
|---|---|
Aerospace | Turbine blades, engine parts, structural elements |
Automotive | Transmission components, engine blocks, suspension parts |
Medical Devices | Surgical instruments, implants, diagnostic equipment |
Industrial Equipment | Components for pumps, valves, and machinery |
You can rely on investment casting for small, complex parts that must meet strict standards. Jiangsu Guojin supplies these parts to leaders in aerospace, automotive, and other fields.

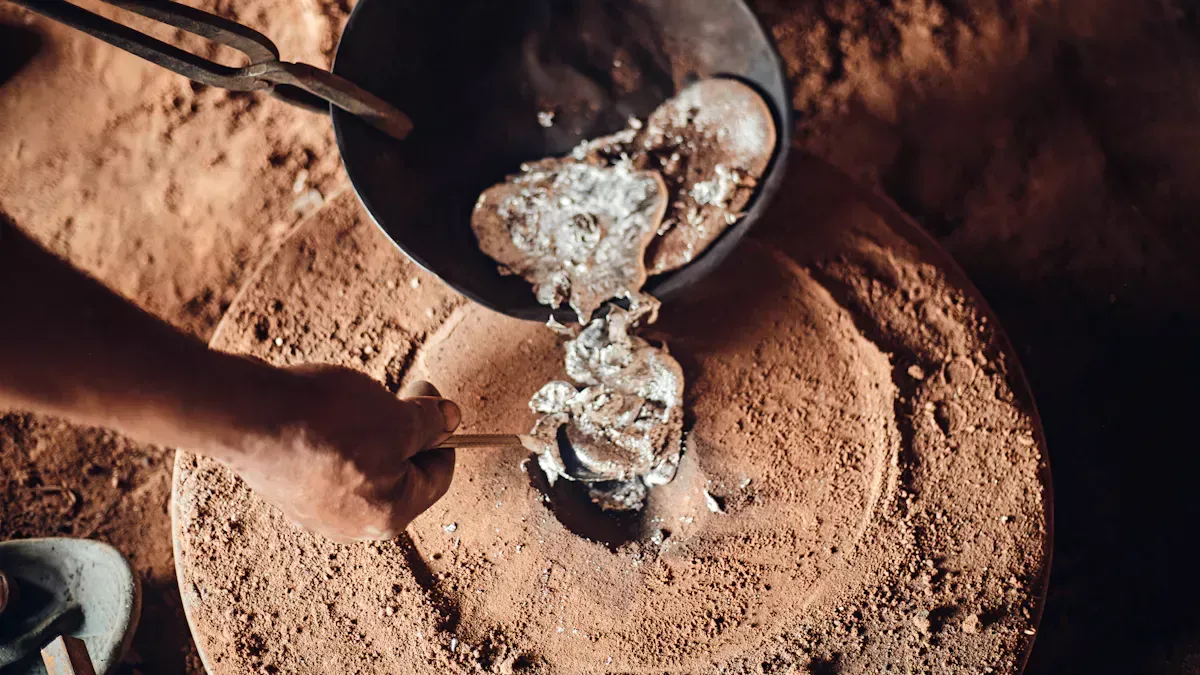

Image Source: pexels
You use sand casting when you want to make large steel parts quickly and affordably. Workers create a mold by packing sand around a pattern shaped like your part. They remove the pattern, then pour molten steel into the cavity. The sand holds the shape as the metal cools. After the steel hardens, workers break the sand mold to reveal your part. You get a rough surface, but you can machine it for a smoother finish. Sand casting works well for simple shapes and big parts.
Sand casting gives you a cost advantage, especially for large parts and smaller production runs. You pay less for tooling because sand molds use wood or metal patterns that cost much less than investment casting dies. You can make parts over 100 pounds without spending a lot on molds. Sand casting suits low to medium volume production, so you avoid high upfront costs if you do not need thousands of parts.
Advantage | Sand Casting | Investment Casting |
|---|---|---|
Ideal for large parts | Yes (over 100 lbs) | No |
Tooling costs | Significantly lower | Higher (e.g., $10,000 die) |
Volume suitability | Low volumes (<500 units) | Higher volumes preferred |
Tolerance requirements | Looser tolerances acceptable | Tight tolerances required |
Speed of production | Faster (wood patterns can be made quickly) | Slower (requires metal tooling) |
Tip: Sand casting is often the best choice when you need big parts or want to keep costs low for smaller batches.
You find sand casting more cost-effective than investment casting for low to medium volume scenarios. You also benefit from faster production times because workers can make sand molds quickly.
You see sand casting in many industries that need strong, large steel parts. Here are some typical applications:
Automotive parts like engine blocks, cylinder heads, gears, and flywheels.
Heavy machinery components such as excavator buckets and gearboxes.
Construction equipment including bulldozer blades and crane parts.
Turbine housings, pump casings, and valves for energy and power generation.
Decorative items like sculptures and furniture pieces.
Sand casting helps you create durable parts for demanding jobs. You get flexibility in size and shape, making it a smart choice for custom steel projects.
You want your custom steel parts to fit and look right. Surface finish and tolerances play a big role in this. Investment casting gives you a much smoother surface and tighter tolerances than sand casting. You can expect a surface finish as fine as Ra 0.5–2 μm with investment casting. Sand casting usually gives you a rougher finish, around Ra 5–10 μm, which often needs extra work to smooth out.
Dimensional tolerances also differ. Investment casting can achieve tolerances as tight as ±0.002 to ±0.010 inches (±0.05 to ±0.25 mm). For most features, you get ±0.003–0.005 inches (±0.08–0.13 mm). Sand casting tolerances are wider, usually ±0.5 mm to ±1.0 mm. This means investment casting is better when you need parts that fit together perfectly.
Process | Tolerance Range |
|---|---|
Investment Casting | ±0.002 to ±0.010 inches (±0.05 to ±0.25 mm) |
Sand Casting | ±0.5 mm to ±1.0 mm |
Tip: Choose investment casting for parts that need a smooth finish and exact fit. Pick sand casting if you can accept a rougher surface and looser tolerances.
Cost is always important when you choose a casting method. You pay more upfront for investment casting because the molds are complex and expensive. However, you save money later because the parts need less machining and finishing. Sand casting molds cost much less, so you spend less at the start. You may need to pay more for extra machining and finishing.
Cost Drivers | Investment Casting | Sand Casting |
|---|---|---|
Mold Costs | High | Very Low |
Subsequent Costs | Low | High |
Ideal Production | Large-Scale | Small-Scale |
Complexity | High Precision Parts | Larger, Simpler Parts |
Cycle Time | Longer | Shorter |
You should also think about material use. Investment casting makes near-net-shape parts, so you waste less material. This helps when you use expensive metals like stainless steel.
How many parts you need affects your choice. Investment casting works best for high-volume production. The high mold cost spreads out over many parts, making each part cheaper. Sand casting is better for low-volume production. The molds are simple and cheap, so you do not need to make a lot of parts to keep costs down.
Production Volume | Investment Casting Cost | Sand Casting Cost |
|---|---|---|
Low | High due to tooling | Low due to simpler setup |
High | Economical per part | Less economical per part |
Investment casting is cost-effective for large batches.
Sand casting is more affordable for small runs.
You have many choices for materials with both methods. Sand casting works with a wide range of metals, including carbon steel, stainless steel, alloy steel, aluminum, bronze, brass, and cast iron. Investment casting also handles most of these metals and does even better with super alloys and stainless steel when you want a fine finish.
Material | Sand Casting | Investment Casting |
|---|---|---|
Carbon Steel | ✔ | ✔ |
Stainless Steel | ✔ | ✔ (better finish) |
Alloy Steel | ✔ | ✔ |
Aluminum Alloys | ✔ | ✔ |
Bronze | ✔ | ✔ |
Brass | ✔ | ✔ |
Cast Iron | ✔ (common) | Limited use |
Super Alloys | Rare | ✔ Preferred |
You should know that sand casting molds can break down at very high temperatures, so they may not work for some super alloys. Investment casting can handle more heat-resistant alloys, but very high-melting metals may need special molds.
You may want parts with special shapes or thin walls. Investment casting lets you create very complex designs, including thin sections and small features. You can make parts with wall thicknesses as low as 0.5 mm and even add internal passages. Sand casting works best for simple shapes and thicker walls, usually 2–3 mm or more.
Casting Method | Minimum Feature Size | Wall Thickness Limit | Complexity of Design |
|---|---|---|---|
Investment Casting | 0.5 mm | 0.5–3 mm | Intricate designs and internal passages |
Sand Casting | 2–3 mm | ≥ 6 mm | Simpler designs, thicker walls |
Note: If your part needs fine details or thin walls, investment casting is the better choice. For large, simple parts, sand casting works well.
You can see the main advantages and disadvantages of investment casting in the table below:
Pros | Description |
|---|---|
Reduced Waste | You get low scrap waste because the process creates consistent castings. |
Faster Production | You save time since less machining is needed after casting. |
Affordable Tooling | You do not need expensive equipment, which keeps costs lower. |
Tight Tolerances | You can achieve tight tolerances, so your parts fit together well. |
Vast Size Range | You can cast both small and large parts, from tiny details to bigger pieces. |
Material Variety | You can use many materials, such as bronze, stainless steel, aluminum, and carbon steel. |
Note: Investment casting works well when you need precise, complex shapes and a smooth finish. You may find the process less suitable for very large parts or when you need only a few items.
You will find that sand casting offers its own set of strengths and weaknesses:
Pros:
You get great design flexibility, so you can create many shapes and sizes.
You can use a wide range of steel alloys and other metals.
You save money on tooling because sand molds are easy to make and change.
Cons:
You may see rougher surface finishes, which often need extra finishing.
You get lower dimensional accuracy, so parts may not fit as tightly.
You need to watch for defects like shrinkage, gas bubbles, or sand getting into the part.
Tip: Sand casting is a smart choice for large, simple parts or when you want to keep costs low for small batches.
You should choose investment casting when you need parts with high precision and smooth surfaces. This method works best for custom steel parts that have complex shapes or thin walls. You can use it for parts that must fit together perfectly or need little extra machining. Many industries, like aerospace, automotive, and medical, use this process for critical components.
Here are some situations where investment casting is the right choice:
You want to create intricate designs or fine details.
Your part needs tight tolerances and repeatable accuracy.
You require a superior surface finish.
The part will be used in high-performance or high-temperature environments.
You need to reduce machining and material waste.
You plan to produce a large number of parts.
Tip: Investment casting is ideal for making stainless steel heat-resistant anchors, insulation nails, and other furnace accessories that must perform well under stress.
You should pick sand casting when you need large steel parts or want to keep costs low for small batches. This method works well for simple shapes and thick walls. You can use it for both small and large production runs. Sand casting gives you flexibility in size and material choice.
Choose sand casting in these cases:
You need to make big parts, like frames or heavy machinery components.
Your design is simple and does not need fine details.
You want to save money on tooling and setup.
You only need a few parts or want to test a design before making more.
You can accept a rougher surface and wider tolerances.
Note: Sand casting is a smart option for custom steel parts used in construction, railway, or heavy equipment, where strength and size matter more than appearance.
You may still wonder which method fits your project. The table below helps you decide based on your needs:
Situation | Best Method | Why |
|---|---|---|
Small, complex steel part | Investment Casting | Achieves fine details and accuracy |
Large, simple steel part | Sand Casting | Handles size and saves on cost |
High-volume production | Investment Casting | Lowers cost per part over time |
Low-volume or prototype | Sand Casting | Quick and affordable setup |
Heat-resistant furnace anchor | Investment Casting | Needs tight fit and smooth finish |
Heavy-duty machine frame | Sand Casting | Requires strength and large size |
If you need help choosing the right process for your custom steel or heat-resistant parts, you can ask experts at Jiangsu Guojin Metal New Material Technology Co., Ltd. Their team can guide you to the best solution for your application.
You need to match your casting method to your project goals. Investment casting gives you high precision and smooth surfaces. Sand casting offers lower costs and works well for large parts. Think about your part’s size, complexity, and performance needs. If you want expert guidance on stainless steel or heat-resistant castings, reach out to Jiangsu Guojin Metal New Material Technology Co., Ltd. Their team helps you choose the best solution for your application.
Tip: Review your requirements before making a decision. The right choice improves quality and saves money.
You get higher precision and smoother surfaces with investment casting. Sand casting gives you lower costs and works well for large, simple parts. Choose based on your part’s size, detail, and budget.
Yes, you can use both methods for stainless steel. Investment casting gives you a better finish and tighter tolerances. Sand casting works well for bigger, less detailed parts.
You should look at your part’s size, shape, and required finish. If you need fine details, pick investment casting. For large or simple parts, sand casting is a smart choice.
Investment casting usually costs more at the start because of complex molds. You save money later since you need less machining. Sand casting costs less upfront but may need extra finishing.
