Views: 0 Author: Site Editor Publish Time: 2026-05-07 Origin: Site
You should choose the best stainless steel grade, such as 310, 309, or 446, when you need reliable stainless steel heat-resistant steel products for high-temperature furnaces. Grade selection plays a key role in safety, durability, and efficiency. Stainless steel keeps its strength and stiffness longer than carbon steel during fire exposure, which means your furnace stays safer and lasts longer. You also benefit from lower replacement and transportation costs, along with improved energy efficiency. Jiangsu Guojin Metal New Material Technology Co., Ltd. offers specialized stainless steel products designed for demanding furnace applications.
Choose stainless steel grades 310, 309, or 446 for high-temperature furnaces. These grades ensure safety and durability.
Understand the temperature limits of each grade. Grade 310 handles up to 1150°C, making it ideal for extreme conditions.
Consider mechanical properties like creep strength. High creep strength helps parts maintain their shape under constant heat.
Balance cost and performance. Lower-cost grades like 430 work well for budget needs, while higher grades offer better durability.
Consult with manufacturers for custom solutions. They can help you select the right grade and product type for your furnace.
Image Source: unsplash
You need to select the right stainless steel grade for your furnace to achieve the best high temperature performance. The most common stainless steel heat-resistant steel products include grades 310, 309, and 446. These grades handle high-temperature environments and offer strong corrosion resistance. You can see their main properties and maximum safe temperatures in the table below:
Grade | Main Alloying Elements (%) | Max. Service Temp. (°C) |
|---|---|---|
310 | 25 | 1050 |
309 | 22 | 1000 |
446 | 26 | 1100 |
Grade 310 gives you very high temperature performance and excellent corrosion resistance. Grade 309 provides high temperature performance and good corrosion resistance. Grade 446 offers moderate high temperature performance and fair corrosion resistance. You should use these stainless steel grades when your furnace operates at high working temperatures. High temperature austenitic grades like 310 and 309 resist oxidation and keep their strength in harsh conditions. High temperature ferritic grades such as 446 perform well in environments where you need high temperature corrosion resistance.
Jiangsu Guojin Metal New Material Technology Co., Ltd. produces stainless steel heat-resistant steel products for high-temperature furnaces. You can choose from stainless steel rods, anchors, and insulation nails. These products support furnace linings and insulation materials. You get reliable performance and durability for high temperature applications.
You must understand how stainless steel grade affects high temperature performance. High-temperature stainless steel grades resist corrosion and keep their shape under extreme heat. The table below shows how chemical composition influences heat resistance and oxidation behavior:
Stainless Steel Grade | Heat Resistance | Oxidation Behavior |
|---|---|---|
309 | High | Good |
310 | Very High | Excellent |
446 | Moderate | Fair |
High temperature austenitic grades like 310 and 309 use more nickel and chromium. These elements boost high temperature performance and corrosion resistance. High temperature ferritic grades such as 446 contain more chromium. This improves high temperature corrosion resistance but gives moderate high temperature performance.
You face several failure modes in high-temperature environments. These include pitting corrosion, crevice corrosion, stress corrosion cracking, intergranular corrosion, and uniform corrosion. High temperature austenitic grades and high temperature ferritic grades reduce these risks. They use alloying elements to protect against corrosion and keep their microstructure stable.
Elevated temperatures speed up corrosion rates. The passive chromium oxide layer can break down, causing localized corrosion. Corrosion rates rise quickly at higher temperatures. You need stainless steel heat-resistant steel products that withstand these harsh conditions.
Jiangsu Guojin Metal New Material Technology Co., Ltd. offers many stainless steel heat-resistant steel products for high-temperature furnaces. You can select from:
High-Strength Y-Wave Anchor for Cement Furnace
Quick Card Insulation Nail
Quick Fix Insulation Nail
Round Steel Insulation Nails
Y Type Anchoring
V Type Anchoring
Stainless Steel Rod
Stainless Steel Heat-resistant Hook
These stainless steel heat-resistant steel products give you strong support and high temperature performance. You can trust them to keep your furnace safe and efficient. You get the best stainless steel grade for your needs and reliable high temperature applications.
Tip: Always match the stainless steel grade to your furnace's maximum safe temperatures and operating conditions. This ensures you get the best high temperature performance and corrosion resistance.
Austenitic stainless steel grades, such as 310 and 347, give you excellent performance in high-temperature furnace environments. You often see these grades in furnace parts, heat treatment fixtures, and chemical processing equipment. They work well in places where you need both strength and resistance to corrosion at high temperatures.
Key strengths of austenitic grades:
Outstanding resistance to high temperatures, especially with 310 stainless steel.
Good resistance to intergranular corrosion, especially with 347 stainless steel.
Superior high-temperature strength and thermal fatigue resistance.
Typical uses include:
Furnace rods and anchors
Heat treatment fixtures
Expansion joints
However, you should know about some weaknesses. Austenitic grades can be more likely to suffer from stress corrosion cracking. They may also become sensitized if exposed to certain temperatures for long periods.
Strengths | Weaknesses |
|---|---|
Excellent resistance to intergranular corrosion | Susceptibility to stress corrosion cracking |
Superior high-temperature strength | Potential sensitization due to carbon |
Good resistance to thermal fatigue |
Ferritic stainless steel grades, such as 446, offer you a cost-effective solution for many furnace applications. These grades contain more chromium and less nickel, which helps lower the price. You often use ferritic grades for furnace anchors, insulation nails, and other support parts.
Ferritic grades show strong oxidation resistance, especially in oxidizing atmospheres. For example, AISI 439 forms a protective chromium oxide scale, which helps it resist oxidation at high temperatures. Ferritic grades like AISI 430E also show higher oxidation resistance at elevated temperatures compared to other ferritic types.
Steel Grade | Atmosphere | Temperature Range (°C) | Oxidation Behavior | Oxidation Resistance |
|---|---|---|---|---|
AISI 439 | Oxygen | Above 850 | Forms Cr2O3 protective scale | Higher oxidation resistance |
AISI 430E | Ar/H2/H2O | 850-950 | Follows Arrhenius law | Higher oxidation resistance |
AISI 304 | Oxygen | 850-950 | Forms iron oxide at 950 °C | Higher oxidation rate in oxygen |
Ferritic grades usually cost less than austenitic grades. You save money because ferritic steel has lower nickel content and is easier to machine. This makes ferritic products a smart choice when you need reliable performance and want to manage your budget.
Tip: Choose austenitic grades for the highest temperature and corrosion resistance. Pick ferritic grades when you need good oxidation resistance and lower costs. Both types are available as rods, anchors, and insulation nails from Jiangsu Guojin Metal New Material Technology Co., Ltd.
Image Source: unsplash

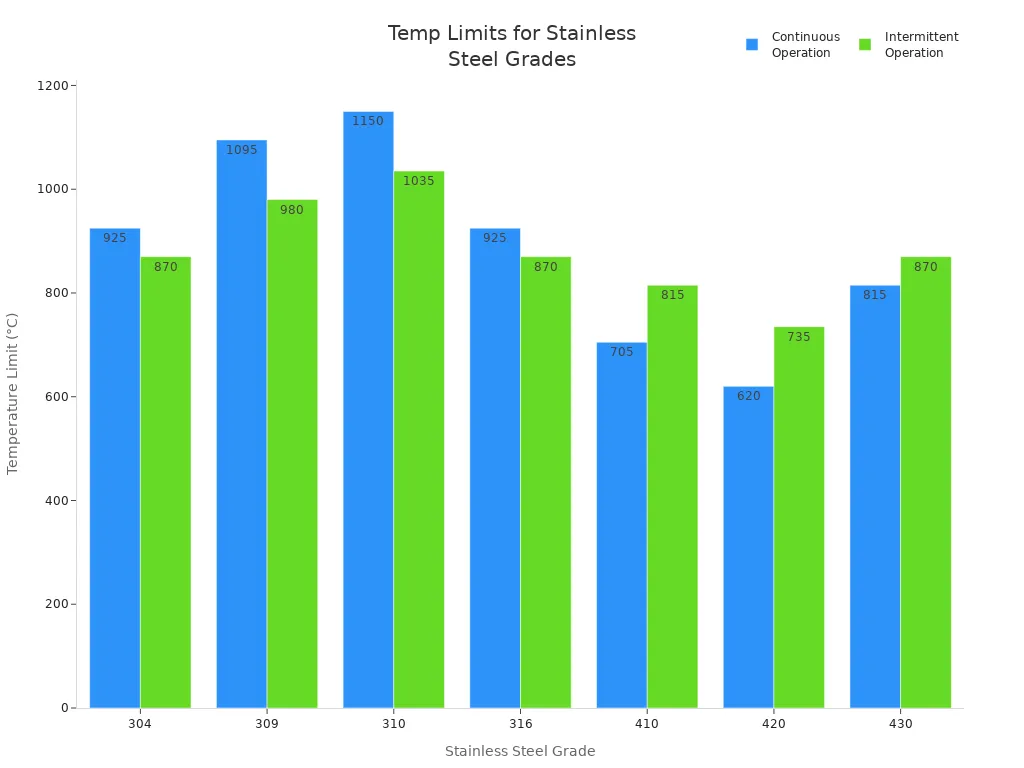

You must check the temperature limits before choosing a stainless steel grade for high-temperature furnaces. Each grade has a maximum temperature it can handle in both continuous and intermittent use. The table below shows the recommended limits for common grades:
Grade | Continuous (°C) | Intermittent (°C) |
|---|---|---|
304 | 925 | 870 |
309 | 1095 | 980 |
310 | 1150 | 1035 |
316 | 925 | 870 |
410 | 705 | 815 |
420 | 620 | 735 |
430 | 815 | 870 |
You should always match the stainless steel grade to your furnace’s high working temperatures. Grades like 310 and 309 are best for high-temperature constructions because they offer high temperature tolerances and strong oxidation resistance. Austenitic grades give you optimized oxidation resistance and high temperature corrosion resistance. Ferritic grades provide enhanced scaling resistance, especially when they contain chromium, silicon, or aluminum.
You need to consider mechanical properties such as creep strength when selecting stainless steel for high-temperature applications. Creep strength tells you how well a material resists permanent shape changes under stress at high temperatures. This property helps your furnace parts keep their shape and strength over time. High creep strength is important for rods, anchors, and insulation nails that face constant heat.
Cost also matters. Lower-cost grades like 430 and 410 work well when you need heat resistance but have a tight budget. Higher-cost grades such as 310 and 309 give you better high temperature tolerances and durability for high-temperature environments. You must balance cost and performance to get the best value for your furnace.
You should use a checklist to pick the right stainless steel product for your furnace:
Identify your furnace’s maximum operating temperature.
Choose a stainless steel grade with high temperature tolerances above your needs.
Check for strong oxidation resistance if your furnace runs in harsh conditions.
Select products with high creep strength for parts under constant stress.
Consider your budget and pick a grade that balances cost and performance.
Match the product type (rod, anchor, insulation nail) to your furnace design.
Tip: You can consult with manufacturers like Jiangsu Guojin Metal New Material Technology Co., Ltd. for custom stainless steel solutions. Their refractory anchors and support parts give stability, resist corrosion, and make installation easier in high temperature applications.
You gain many advantages when you choose the best stainless steel heat-resistant grades for your high-temperature furnace:
High fatigue strength and creep resistance
Excellent corrosion resistance
Resistance to scaling and embrittlement
Stable microstructure and long service life
Matching the right grade and product type to your furnace needs improves performance and durability.
Benefit | Description |
|---|---|
Optimal Efficiency | The right grade boosts heating system efficiency. |
Durability | Proper selection extends component lifespan. |
For expert advice and quality products, you should consult trusted manufacturers like Jiangsu Guojin.
Stainless steel contains chromium and nickel. These elements help the steel resist heat and corrosion. You can use it in furnaces because it stays strong at high temperatures.
You should pick grade 310 or 309 for most high-temperature furnaces. Grade 446 works well for some applications. Check your furnace’s maximum temperature before you decide.
You can use stainless steel rods and anchors in many furnace types. They support refractory linings and insulation. Always match the product to your furnace’s temperature and design.
You can contact Jiangsu Guojin Metal New Material Technology Co., Ltd. for custom solutions. Their team helps you select the right grade and product for your furnace.
