Industrial thermal management often pits labor efficiency against structural durability. Facility managers constantly battle labor-intensive installation methods in unforgiving high-temperature environments. Kilns and industrial furnaces demand robust construction. "Quick card" or self-locking insulation nails seem like an attractive fix. Do they support faster installation? Yes. However, their viability depends heavily on specific application zones, temperature thresholds, and base material compatibility. Prioritizing speed without verifying load capacity and heat resistance leads to catastrophic refractory failure. This guide provides facility managers and procurement engineers with a clear framework. You will learn how to evaluate fast-install fastening systems against traditional heavy-duty anchoring methods.
Quick card insulation nails significantly reduce labor hours for cold-face and secondary insulation layers but require strict adherence to spacing and load guidelines.
Hot-face applications generally demand a specialized kiln refractory anchor rather than standard rapid-install clips due to thermal expansion and metallurgical stress.
Validating an easy install insulation nail requires testing pull-out strength, corrosion resistance, and specific substrate compatibility (e.g., steel shell vs. masonry).
Choosing the right fastening system is only half the equation; partnering with an audited, compliance-aware supplier mitigates long-term operational risks.
Push-on clips, self-locking washers, and quick-card designs are brilliant in their simplicity. Installers slide them over a pre-welded pin. This action eliminates complex threading. It removes the need for secondary welding. Grip teeth inside the washer bite securely into the metal shaft. They hold the insulation firmly in place. Installers appreciate this streamlined process. It requires very little training. This makes the easy install insulation nail highly attractive for fast-paced construction. We see many contractors defaulting to these components to meet tight deadlines.
Reduced installation time slashes immediate labor expenses. You must weigh this benefit against severe long-term material risks. If the fastener yields, the insulation sags away from the casing. A small gap quickly becomes a massive problem. This creates dangerous thermal bridging. Heat escapes rapidly, and the outer steel shell warps under the stress. Speed is ultimately useless if the thermal system fails during peak operation.
Where do fast-install designs excel? They shine in secondary backup insulation layers. They perform admirably in low-vibration zones. You can safely deploy them on outer furnace walls. They also work exceptionally well for underfloor cold-face barriers. These specific areas experience highly stable temperatures. The mechanical stress remains consistently low throughout the entire production cycle.
We must transparently address their operational shortcomings. Quick-lock systems fail under extreme thermal shock. Heavy structural loads cause thin clips to buckle instantly. You should completely avoid using them directly exposed to intense burner flames. Massive mechanical vibration easily rattles self-locking teeth loose. Hot-face linings require much more robust hardware. Engineers must respect these hard limitations.

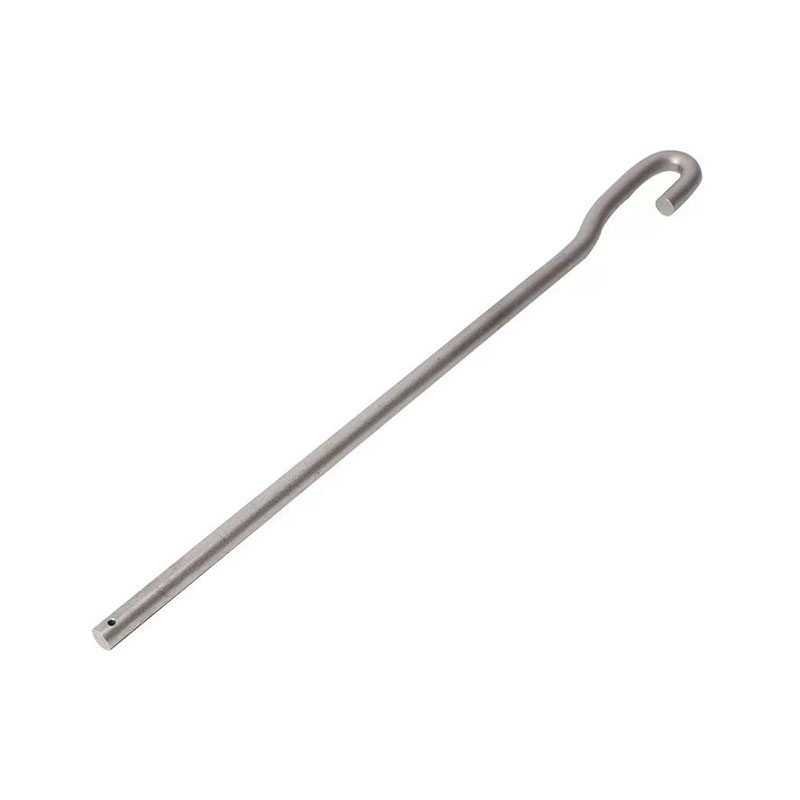

High-grade alloys are strictly non-negotiable for thermal hardware. Common carbon steel rapidly oxidizes above 400°C. It loses mass and structural integrity. A standard kiln refractory anchor uses premium alloys like SS 304, 310, or Inconel. They maintain high tensile strength at continuous elevated temperatures. They resist aggressive scaling and atmospheric degradation. You cannot compromise on metallurgy when designing internal furnace structures.
Holding power relies entirely on physical geometry. V-shape, Y-shape, and corrugated anchors offer immense grip. They dig deep into heavy castable linings. Straight pins used with quick cards cannot match this structural grip. Thick refractory layers demand complex anchoring shapes. The angled tines lock the castable matrix securely to the steel shell.
Refractory castables and brickwork expand dynamically when heated. They shrink significantly during cooling cycles. Rigid refractory anchors must safely accommodate this thermal movement. If the anchoring system is too stiff, the refractory cracks under pressure. Flexibility within the anchor design prevents catastrophic lining failure. Plastic caps on anchor tips provide critical expansion gaps.
Buyers need a reliable checklist to evaluate anchoring hardware. Consider these primary technical criteria before purchasing bulk supplies:
Temperature limits: The alloy must exceed the maximum operating temperature of its specific furnace zone.
Load-bearing capacity: Calculate the exact weight of the refractory material per square meter.
Chemical environment resistance: Ensure the material resists sulfur, vanadium, or other corrosive combustion byproducts.
Substrate compatibility: Verify exactly how the anchor will weld to the existing carbon steel shell.
When do you drop quick-card systems for heavier hardware? Specific operational thresholds strictly demand an upgrade. High vibration frequencies loosen friction-based clips rapidly. Dense insulation requirements overstress thin pins. Peak temperature spikes melt standard galvanized washers. Once your environment crosses these specific lines, you must switch to a heavy-duty furnace insulation fastener.
Metallic fasteners eventually fail at extreme heat limits. When internal furnace conditions exceed 1200°C (2200°F), metallic strength drops severely. At this critical stage, ceramic anchors become absolutely mandatory. They handle brutal thermal shock much better than any steel alloy. Ceramic parts connect to the steel casing via metallic holding clips. This intelligent design keeps the vulnerable metal safely behind the thick insulation.
Modern furnace designs often utilize layered hybrid approaches. This balances installation speed and structural safety perfectly. Heavy-duty metallic or ceramic anchors secure the dense hot-face refractory. Meanwhile, rapid-install clip systems handle the outer backup ceramic fiber blankets. This dual strategy optimizes both labor efficiency and long-term thermal reliability.
Chart: Fastener Application Comparison Matrix | |||
System Type | Optimal Location | Vibration Tolerance | Installation Speed |
|---|---|---|---|
Quick Card Clip | Cold-face, Backup Layers | Low | Very Fast |
Metallic Anchor | Mid-to-Hot Face | Moderate | Moderate |
Ceramic Anchor | Extreme Hot Face | High | Slow |
Base materials vary wildly across industrial facilities. You might install fasteners onto fresh carbon steel casings. You might drill into existing concrete or refractory brick. Each substrate demands highly specific attachment techniques. Steel shells require precise stud welding. Masonry requires expansion anchors or chemical resins. Evaluate your substrate thoroughly before selecting the pin base.
Industry-standard spacing prevents insulation from sagging over time. Standard grid patterns usually range around 300mm to 400mm intervals. Follow these layout rules:
Overhead roof sections require tighter spacing to combat gravity.
Vertical sidewalls use standard square grid layouts.
Edge detailing around burner blocks requires denser pin placement.
Following these layout norms ensures the blanket remains fully supported throughout its lifespan.
Avoid frequent installation mistakes. We see three major avoidance points consistently in the field. First, over-compressing the board damages its R-value. Pushing the washer too hard ruins the material thickness. Second, damaging the vapor barrier invites severe internal casing corrosion. Puncturing foil backings traps moisture. Third, inadequate pin penetration leads to immediate pull-out failure. Failing to push the pin completely through the material leaves the washer gripping nothing.
Table 1: Fastener Troubleshooting Guide | ||
Observed Issue | Likely Cause | Corrective Action |
|---|---|---|
Washer slipping off pin | Damaged locking teeth | Replace with a new self-locking clip |
Insulation tearing at pin | Over-compressed board | Reduce installation pressure |
Pin breaking at base | Poor stud weld quality | Re-calibrate welding equipment |
Facility safety relies heavily on strict code compliance. Align your fastener choices with established thermal standards. Frameworks like API 560 dictate fired heater construction rules globally. They outline minimum alloy grades for highly specific temperature ranges. Using uncertified fastening hardware blatantly violates safety codes. It exposes the facility to massive liability during an unexpected outage.
Never buy unverified thermal hardware. Buyers must actively demand Mill Test Certificates (MTCs). Material traceability prevents counterfeit alloys from entering your facility. Fake stainless steel melts surprisingly quickly under industrial heat. A reputable supplier guarantees the exact chemical composition of every batch. Strict QA protocols ensure your anchors perform exactly as rated.
Bulk hardware sellers offer very little long-term value. A true partner provides comprehensive engineering support. They offer documented pull-out testing data. They provide site-specific spacing recommendations tailored to your exact furnace. A technical partner reviews your furnace drawings before ever suggesting a fastener. They actively help you avoid costly design mistakes during the initial procurement phase.
Furnace outages cost facilities massive amounts of money per hour. Evaluate your kiln thermal insulation parts supplier carefully. Assess their standing inventory depth. Check their custom manufacturing capabilities. Fast turnaround times matter immensely during unexpected emergency rebuilds. You need a trusted partner who can deliver critical components overnight when a refractory wall collapses suddenly.
Procurement teams should take deliberate steps before ordering. Request physical sample batches of the fasteners. Perform rigorous on-site weld and pull testing. Verify the welding compatibility with your specific steel casing. Test the locking strength of the washers manually. Do this completely before committing to a massive, full-scale furnace relining order.
Quick card systems remain a proven, highly efficient solution for non-critical temperature zones. They save immense labor hours on backup insulation layers. However, they are not a universal replacement for engineered refractory anchoring. You must match the fastener's metallurgical properties strictly to your environmental demands. Ignoring extreme heat or heavy structural loads guarantees premature lining failure.
Success requires balancing speed with uncompromising safety. Assess your specific furnace zones carefully. Use heavy-duty metallic or ceramic anchors for the aggressive hot-face. Rely on quick clips only for protected cold-face barriers. We encourage engineers and procurement teams to consult with technical specialists. Request detailed material data sheets. Schedule a comprehensive application review for your next major rebuild project.
A: It depends entirely on the specific alloy used. Standard galvanized pins fail at relatively low temperatures around 200°C. Meanwhile, stainless steel grades like 304 or 316 can handle significantly higher limits. Specialized alloys push this further. However, they are rarely suited for direct hot-face exposure in industrial kilns.
A: Typically, no. Ceramic fiber modules require specialized internal anchoring systems. They rely on heavy-duty stud welding rather than surface-level quick clips. Internal anchoring ensures proper module compression. This guarantees structural safety and prevents the heavy modules from falling away from the furnace ceiling.
A: Spacing is primarily dictated by the density of the insulation. You must also consider the operating temperature and the physical orientation. Generally, overhead roof installations require a much higher density of fasteners per square meter. Vertical sidewalls allow for slightly wider grid spacing.
A: Rarely. Once you push a clip onto a locking pin, the internal gripping teeth engage tightly. Removing the self-locking washer usually damages these delicate teeth. Best practice strictly dictates using entirely new clips during relining. This guarantees maximum holding strength and prevents unexpected insulation sagging.
