Industrial outages demand brutal precision from plant managers, turnaround planners, and reliability engineers. Preparing for upcoming outages or resolving chronic refractory failures requires looking deeper than surface-level cracks. You must inspect the underlying support structures.
Surprisingly, up to 40% of refractory lining failures originate from improper anchor selection or faulty installation. An incorrect specification inevitably leads to spalling, collapsed linings, and severely costly unplanned downtime. Minor engineering oversights compound rapidly under extreme heat.
This guide provides a direct, engineering-based framework for evaluating and specifying a durable furnace anchor. We will outline practical steps to ensure lining integrity. You will learn how to extend your equipment lifecycle and protect your critical turnaround budgets.
Material dictates survival: Select alloys (e.g., SS 310, Inconel) based not just on ambient temperature, but on calculated heat gradients and chemical corrosivity.
Design dictates stability: Match anchor geometry (V, Y, Spiral, Knurled) to specific operational stresses like vibration or extreme thermal cycling.
Sizing rules are non-negotiable: Anchors must penetrate 75-85% of the castable lining thickness, with tips positioned carefully to prevent burn-out.
Installation is a vulnerability: Even premium anchors fail if welded manually with high defect rates or if thermal expansion differentials are ignored.
You cannot treat these hardware components as simple, interchangeable commodities. We must frame them as critical structural assets. Plant operators sometimes chase minor cost savings on hardware during procurement. This mindset often triggers catastrophic lining collapses just months into a new run cycle. When internal hardware degrades, the entire refractory mass loses its mechanical grip on the steel shell.
Different operational stresses destroy hardware in unique ways. Using the wrong alloy material inevitably leads to accelerated creep and severe chemical corrosion. Creep causes the metal to permanently deform under sustained high temperatures. Once deformed, it pulls away from the castable material.
Incorrect spacing also creates massive problems. Placing hardware too close together restricts the natural expansion of the refractory mass. This generates overwhelming internal stress, fracturing the castable from the inside out. Furthermore, insufficient length causes the castable to literally sheer off the wall. If the metal does not reach deep enough into the dense layer, it simply cannot support the dead weight.
Many procurement teams simply re-order what they bought last time. You must move away from legacy specifications. Outdated blueprints rarely account for modern production demands or altered fuel chemistries. Emphasize the use of accurate heat loss calculators. These tools define the exact metallurgical requirements needed at the hot face, rather than relying on guesswork.
Evaluating high temperature anchoring parts requires strict alignment. You must align alloy limits with your actual operational environments. Looking solely at ambient internal air temperature is a flawed approach. Instead, calculate the exact heat gradient at the precise depth where the metal tip sits.
Austenitic stainless steels form the backbone of most moderate-to-high temperature applications. They offer reliable oxidation resistance and structural stability.
SS 304: This serves as the industry baseline. It remains effective and structurally sound up to approximately 900°C (1650°F). Use it for standard, non-corrosive environments.
SS 316: This grade contains added molybdenum. The molybdenum makes it ideal for corrosive environments facing localized chemical attacks. It operates safely up to roughly 925°C.
SS 310: Featuring a high chromium and nickel content, this grade stands as the standard choice for continuous, punishing exposure up to 1200°C. It resists oxidation brilliantly.
Certain industrial processes exceed the capabilities of any standard stainless steel. Environments surpassing 1200°C demand specialty nickel-based alloys. We highly recommend Inconel 601 or Incoloy 800 for these brutal conditions. They perform exceptionally well where carburization or sulfidation is present. Petrochemical reactors and specialized incinerators frequently rely on these premium grades to prevent rapid metallic degradation.
Sometimes, metal is simply the wrong choice. Introduce ceramic alternatives, such as fireclay or high-alumina compositions, when metal degradation becomes unavoidable. Ceramic represents the necessary alternative for extreme thermal cycling. Furthermore, if you are designing ultra-thick linings exceeding 9 inches, ceramics bridge the gap where even advanced nickel alloys would eventually fail.
Table 1: Alloy Selection Matrix based on Temperature & Environment | |||
Material Grade | Max Operating Temp | Primary Benefit | Ideal Application |
|---|---|---|---|
SS 304 | 900°C (1650°F) | Cost-effective baseline strength | Standard kilns, non-corrosive ducts |
SS 316 | 925°C (1700°F) | Enhanced localized corrosion resistance | Moderate chemical exposure zones |
SS 310 | 1200°C (2190°F) | Superior continuous oxidation resistance | High-heat furnace walls, standard incinerators |
Inconel 601 | >1200°C | Resists sulfidation and carburization | Petrochemical reactors, extreme environments |

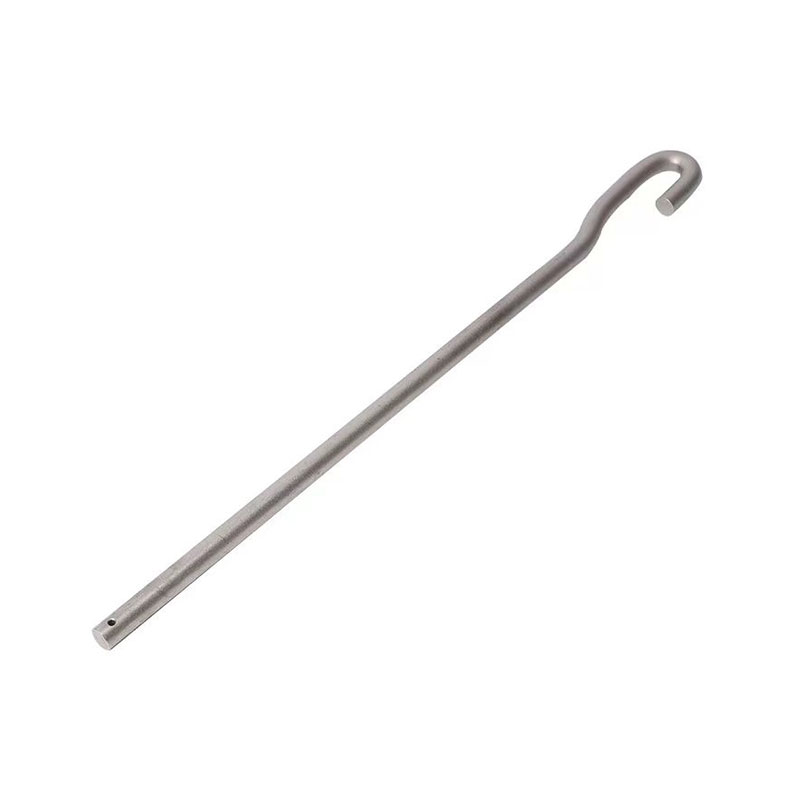

Geometry plays an equally critical role as metallurgy. The physical shape of the hardware determines how it manages weight, vibration, and thermal movement. You must match the profile to your specific operational stress profile.
For standard static loads, engineers predominantly use V-Type and Y-Type profiles.
Discuss V-types for their straightforward mechanical stability. They grab the castable effectively in standard kiln sections and straight walls. However, heavier refractory masses require an upgrade. Y-types offer superior, even load distribution. The split-branch design of a Y-profile disperses internal stress across a wider area of the aluminosilicate matrix, reducing the chance of localized cracking.
Equipment like rotary kilns experience violent, dynamic thermal cycling. They rotate continuously while heating and cooling. Standard rigid shapes often snap under this twisting pressure. Spiral geometries physically adapt to expansion and contraction. Their twisted design acts almost like a rigid spring, yielding just enough to absorb the movement without breaking their grip on the refractory.
Industrial machinery frequently generates heavy mechanical vibration. Over time, smooth metal surfaces allow the castable material to slip and shift. Textured or knurled surfaces solve this issue. The artificial texturing provides necessary friction to prevent castable slippage. We always specify knurled profiles for drop-out boxes, vibrating grates, and heavy-duty ash hoppers.
Large-scale industrial furnaces require specialized profiles for complex weight dispersion. UV-types and L-types handle massive dead loads. They minimize direct heat transfer to the cold face shell while providing maximum structural shelving. Use these robust profiles when supporting heavy monolithic roofs or expansive vertical walls.
Precision in designing industrial furnace anchorage separates multi-year lifespans from early-stage spalling. Even the perfect alloy and shape will fail if you size it incorrectly. Following strict mathematical rules is mandatory.
The Penetration Rule: Anchor height must penetrate 75-85% of the primary dense castable layer. If it sits too shallow, the face of the lining will shear off. If it sits too deep, you risk catastrophic heat exposure.
Hot Face Proximity: Establish the absolute rule that for linings over 6-7 inches thick, the tip should never sit more than 2 inches away from the hot face. Pushing the tip too close to the direct flame guarantees rapid oxidation and immediate "burn-out".
You must address the critical reality of thermal dynamics. Metal expands roughly three times faster than aluminosilicate refractories. If you embed rigid steel tightly inside a rigid castable, the expanding steel will act like a wedge, cracking the refractory matrix apart during the initial dry-out phase.
Detail the industry best practice of capping tips with specialized materials. Installers commonly use plastic caps, specific industrial wax, or heavy tape over the exposed metal ends. Why? As the furnace heats up during its initial run, these protective covers burn off at relatively low temperatures. This controlled burn-out leaves a tiny, designated expansion void in the castable. When the metal reaches peak operating temperature, it expands safely into this empty void rather than cracking the surrounding wall.
Procurement plays a massive role in equipment reliability. Knowing how to vet manufacturers when procuring industrial kiln spare parts for upcoming turnarounds will save you immense frustration and capital.
The manufacturing process naturally bends and forces metal into sharp angles. This leaves massive internal residual stresses trapped inside the steel. Look for suppliers that utilize Bright Annealing. This advanced heat-treatment process removes internal manufacturing stresses and reduces the overall hardness of the metal. Specifying bright annealed parts directly lowers the risk of the metal cracking under thermal load.
Installation methods dictate long-term success. Always question potential suppliers on their installation capabilities and recommended methodologies. Contrast standard manual welding against modern automation.
Manual stick welding (SMAW) carries a highly variable human error rate. Porosity, weak root penetration, and undercut defects occur frequently. Conversely, automated Rapid Arc Welding (RAW) technologies eliminate these variables. RAW drives rejection rates down to less than 0.1%. It delivers perfectly consistent, high-strength welds in a fraction of the time.
Turnaround schedules are remarkably tight. Assess your vendor's ability to provide modular prefabrication. Pre-welding hardware onto shell panels in a controlled shop environment allows you to strictly control QA/QC. It eliminates the chaotic variables of field welding inside a dark, dirty vessel. Prefabrication accelerates onsite turnaround schedules and significantly improves overall safety metrics.
Durable anchor selection is not a guessing game. It remains a precise equation of metallurgy, geometry, and strict sizing math. Up to 40% of failures stem from ignoring these fundamental rules. By matching your alloy to the exact chemical environment, choosing a profile designed for your operational stress, and leaving room for thermal expansion, you guarantee a longer equipment lifecycle.
Your next steps are clear. Advise your procurement and engineering teams to aggressively audit their current failure logs. Stop automatically re-ordering legacy components. Run updated heat gradient calculations for your critical zones, and consult with a specialized refractory engineer to design a structural system that actually lasts.
A: The structural height must penetrate exactly 75-85% into the main dense castable layer. This precise depth ensures an incredibly strong structural grip on the heavy refractory mass. Crucially, keeping it below 85% prevents exposing the vulnerable metal tip to direct flame, which prevents rapid oxidation and burn-out.
A: Cracking occurs because metallic alloys expand roughly three times faster than surrounding aluminosilicate materials under heat. To prevent internal fracturing, installers must place plastic caps, wax, or heavy tape over the tips before pouring. These materials burn off at lower temperatures, creating a designated thermal expansion zone for the metal.
A: You should specify ceramic alternatives when facing extreme thermal cycling or highly aggressive chemical attacks that destroy metals quickly. Furthermore, they are mandatory for ultra-thick linings exceeding 9 inches. In these extreme depths, even premium specialty alloys like Inconel 601 degrade predictably.
A: V-type profiles offer a standard, reliable mechanical grip suitable for basic, moderate-weight kiln sections. Y-type profiles feature a split-branch geometry. This specialized branching provides dramatically enhanced load-distribution capabilities, making them the superior choice for supporting heavier, thicker refractory masses on vertical walls and ceilings.
